high mast pole

Name: high mast pole
Brand: AJAY ENTERPRISES
Price: 10000.0 INR
Availability: InStock

Price 10000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

high mast pole Specification

Usage & Applications
Stadiums, highways, airports, industrial areas, outdoor large-area lighting

Features
Corrosion-resistant, easy installation, heavy-duty construction, wind load tested

Mounting Type
Flange mounted with anchor bolts

Thickness
3mm to 10mm (as per pole section)

Pole Type
Polygonal High Mast Pole

Surface Finish
Hot Dip Galvanized to 65-90 microns

Weight
600 kg - 2500 kg (Varies with height and design)

Product Type
High Mast Lighting Pole

Material
Hot-dip Galvanized Steel

Rated Power
200W - 1200W (Depending on lamp type and number of luminaires)

Length
10-40 meters as per requirements

Voltage
220V-415V AC

Lighting
LED/Sodium Vapor/Metal Halide

Input Voltage
220V AC

Working Temperature
-40C to +55C

Rated Current
Up to 16 Amp

Socket
Standard compatible, customizable based on requirement

Color
Silver (Galvanized)

Height
12m, 16m, 20m, 25m, 30m, 35m, 40m (customizable)

Base Plate Dimensions
As per design standard, varies with height

Wire Rope Material
AISI 304 Stainless Steel

Protection Class
IP66 for lighting fixtures

Ladder/Climbing Arrangement
Integrated or optional external ladder

Head Frame
Heavy-duty, with provision for multiple fixtures

Pole Sections
Telescopic, with slip-joint connections

Inspection Door
Provided at the base for easy maintenance

Lamp Mounting Capacity
Up to 24 luminaires depending on head frame

Galvanization Standard
IS 2629/BSEN ISO 1461

Foundation Type
RCC with anchor bolts

Cross Section
Octagonal, Polygonal, or Circular

Number of Lantern Carriages
Single or Double as required

Wind Resistance
Designed for wind speed up to 180 km/h

Winch Type
Self-sustaining, double-drum

Raising & Lowering System
Motorized winch with stainless steel wire rope

high mast pole Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Day

Delivery Time
1 Week

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia

Main Domestic Market
All India

Certifications
GST/ISO

About high mast pole

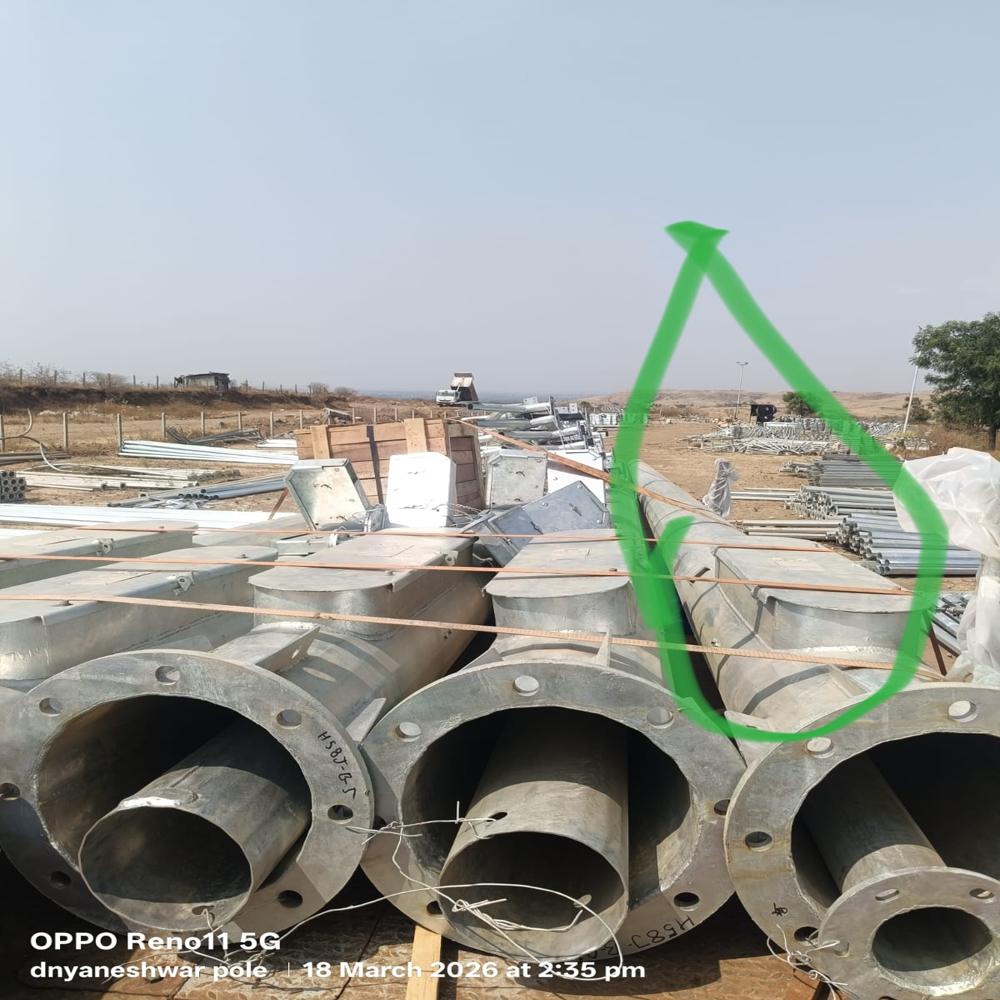

12.5 to 30 m High Mast Lighting Poles are sectional steel poles manufactured in multiple sections and assembled on site. These are used for lighting large areas such as parking lots, railway transfer yards and provincial and municipal highways. It comes in variety of sizes and thickness based on which in can be used in various applications.

Robust Construction and Flexible Design

Engineered from hot-dip galvanized steel and available in multiple cross-section shapes, these high mast poles provide superior durability and corrosion resistance. The structural design includes base plates and thicknesses tailored to specific site requirements, enabling usage in diverse locations and weather conditions. The telescopic and slip-jointed pole sections simplify transportation and installation, while the galvanized finish enhances longevity.

Smart Lifting and Maintenance System

Each pole features a motorized winch with an AISI 304 stainless steel wire rope for smooth, reliable raising and lowering of lantern carriages. With an integrated inspection door and optional ladder arrangements, maintenance tasks are safer and more efficient. The self-sustaining, double-drum winch paired with a sturdy RCC foundation ensures operational safety and stability, even under challenging conditions.

Optimized Lighting and Performance

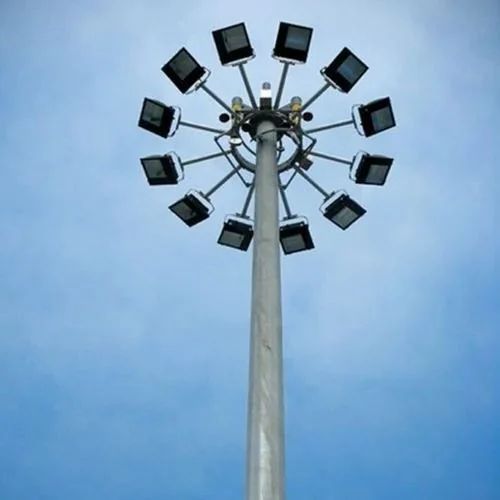

Designed for maximum lighting efficiency, the high mast poles accommodate up to 24 LED, sodium vapor, or metal halide luminaires. The head frame supports multiple fixture types, making this system adaptable for custom lighting solutions. Certified to withstand winds up to 180 km/h and working temperatures between -40C and +55C, these poles guarantee consistent lighting in demanding environments.

FAQ's of high mast pole:

Q: How does the raising and lowering system for the high mast pole work?

A: The high mast pole uses a motorized winch system, equipped with a self-sustaining, double-drum mechanism and AISI 304 stainless steel wire rope. This allows the lantern carriage to be safely raised and lowered for maintenance or lamp replacement, ensuring minimal downtime and enhanced safety.

Q: What types of applications are suitable for these high mast poles?

A: These poles are ideal for stadiums, highways, airports, industrial areas, and other large outdoor spaces requiring reliable, high-mounted lighting. With customizable heights and mounting options, they excel in environments where powerful illumination and robust construction are essential.

Q: When should I choose a polygonal or octagonal pole cross-section?

A: The choice between polygonal, octagonal, or circular cross-sections depends on structural requirements, wind conditions, and aesthetic preferences. Polygonal and octagonal shapes offer enhanced strength and wind resistance, making them suitable for taller installations or harsh climates.

Q: Where can these high mast poles be installed?

A: Designed with adaptable mounting options-including flange mounting with RCC anchor bolt foundations-these poles can be installed in a wide range of settings: from sports complexes and ports to roadways and industrial facilities.

Q: What is the process for maintaining a high mast pole?

A: Maintenance is streamlined through an integrated inspection door at the pole base, allowing secure access to internal components. The motorized winch system enables safe lowering of the lantern carriage, and optional ladder or climbing arrangements support efficient routine inspection and servicing.

Q: How are the poles protected from corrosion and harsh weather?

A: Each pole is hot dip galvanized to a thickness of 65-90 microns, meeting IS 2629/BSEN ISO 1461 standards. This process provides superior corrosion resistance, while the design ensures wind resistance up to 180 km/h and operational reliability in extreme temperatures from -40C to +55C.

Q: What benefits do these high mast poles offer over conventional lighting solutions?

A: They provide extensive coverage, superior wind and corrosion resistance, and easy maintenance thanks to advanced raising and lowering systems. This reduces operating costs, increases safety, and ensures consistent high-quality lighting for demanding outdoor environments.
